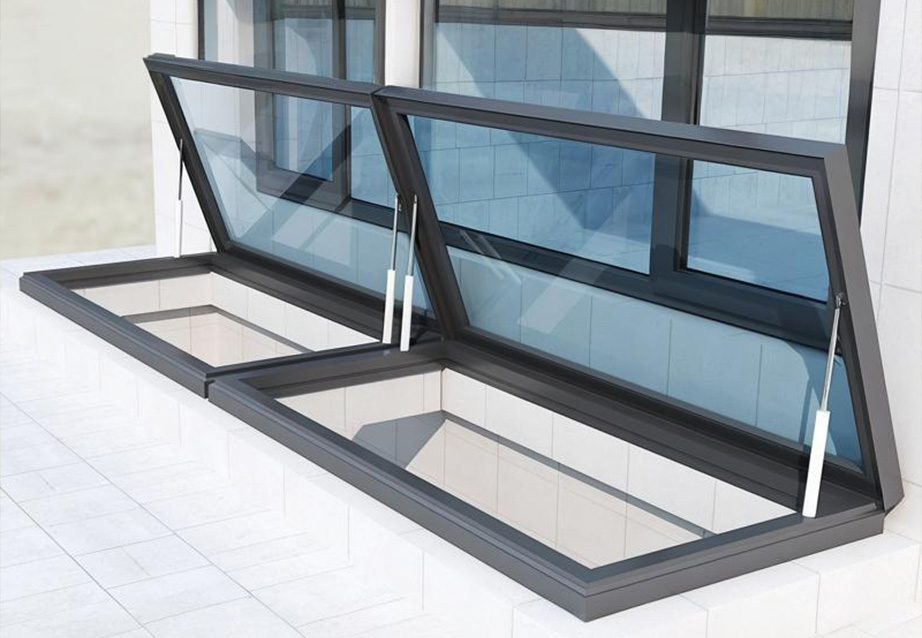

Electric overhead sunroof

share to:

1. The outward-opening and top-hanging opening design allows the windows to be opened even on rainy days to keep the air fresh. It effectively blocks rainwater and provides healthier ventilation.
2. When closed, all sides of the window sash are fixed on the window frame, which is safe and anti-theft.
3. The outward-opening top-hung window avoids occupying indoor space when the window is opened and only partially opens the window, thus protecting your family life.
4. Equipped with a child lock function to prevent children from opening the windows to play and play without permission, making the home a truly warm haven for us.
5. Intelligent control, can be connected to smart home system, voice control, mobile phone remote control, rain sensor, etc.

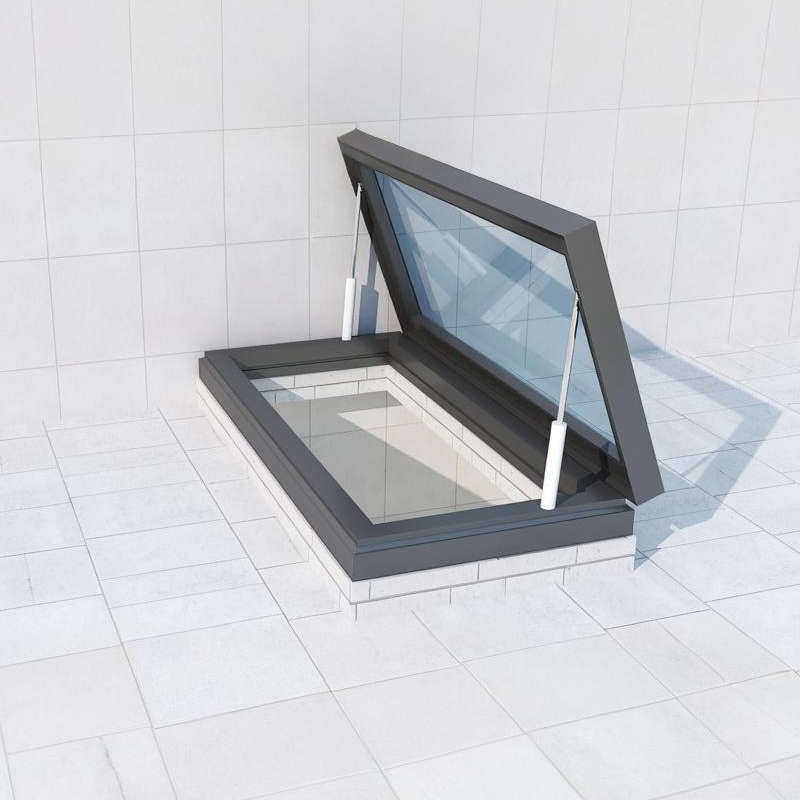

Ordinary top-hung skylight Specifications
Profile thickness	2.0mm
Profile Series	SRY 70 Series
Customizable size range	L:≤2m，W:≤1.5m
Installable glass thickness	≤40mm
Motor service life	3 years
Profile service life	10 years

Operating principle

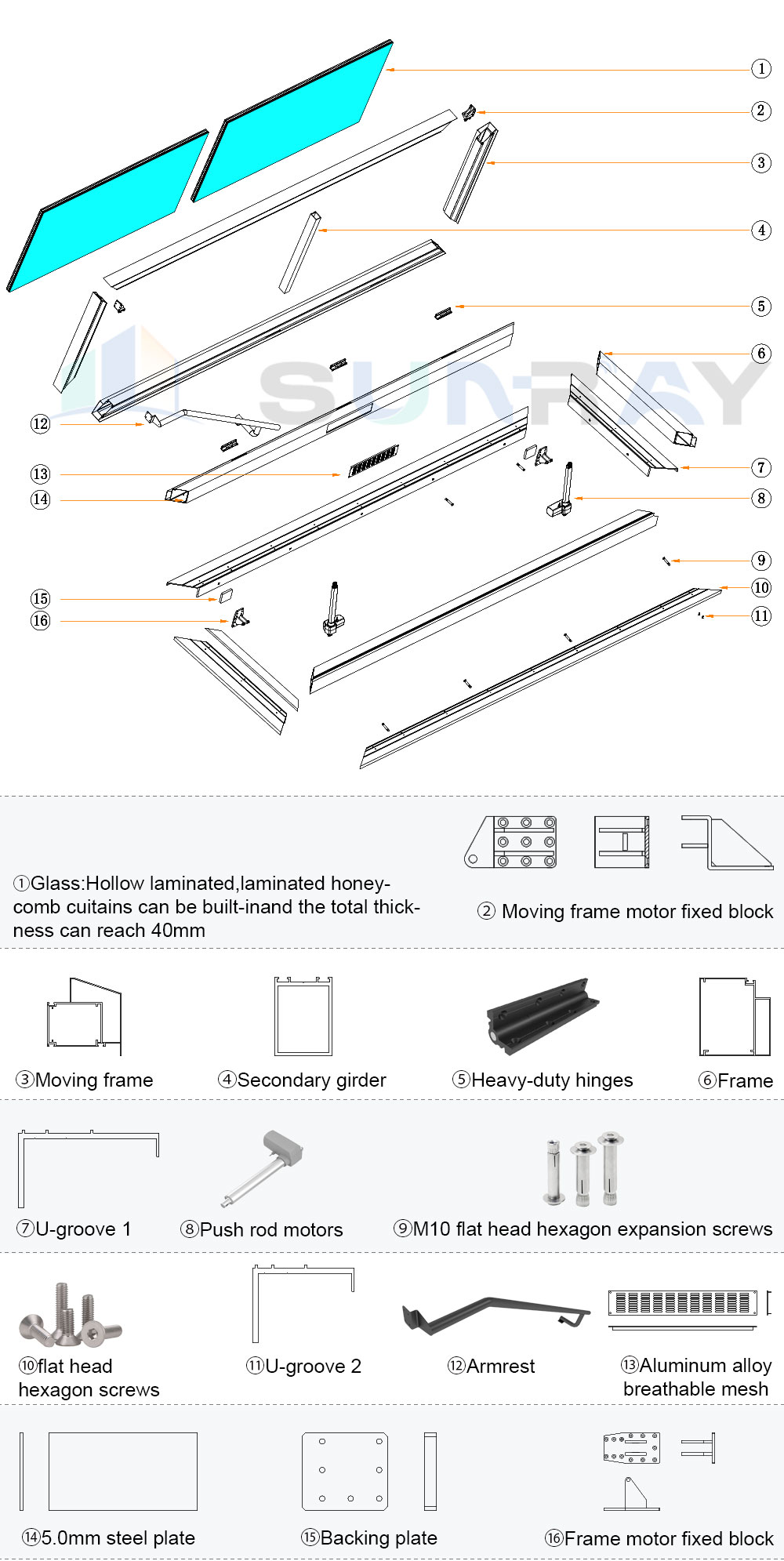

1.The mixed connection method of interlocking and cross screws firmly fixes the skylight to the building structure.

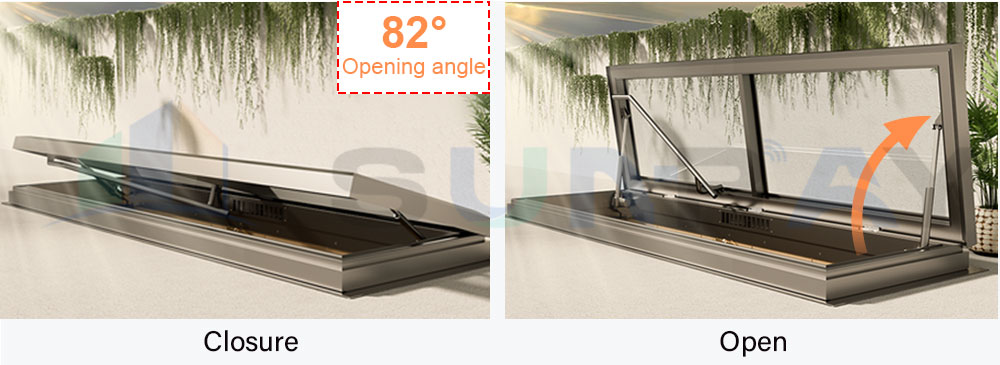

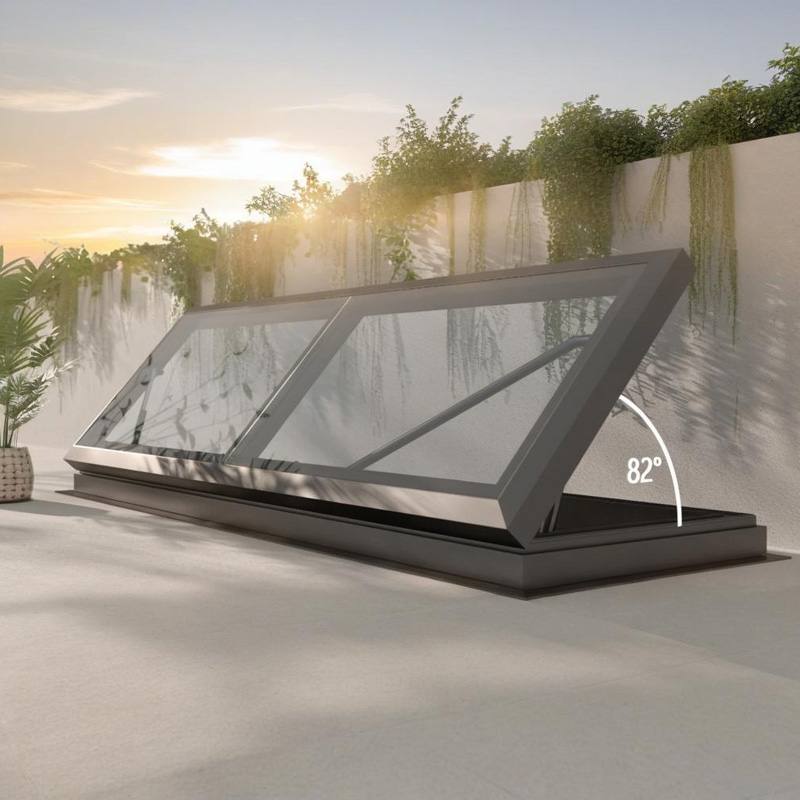

2.The snap-on cross screws and heavy-duty hinges ensure that the skylight can be easily opened to 82°

3.The push rod motor provides strong power.

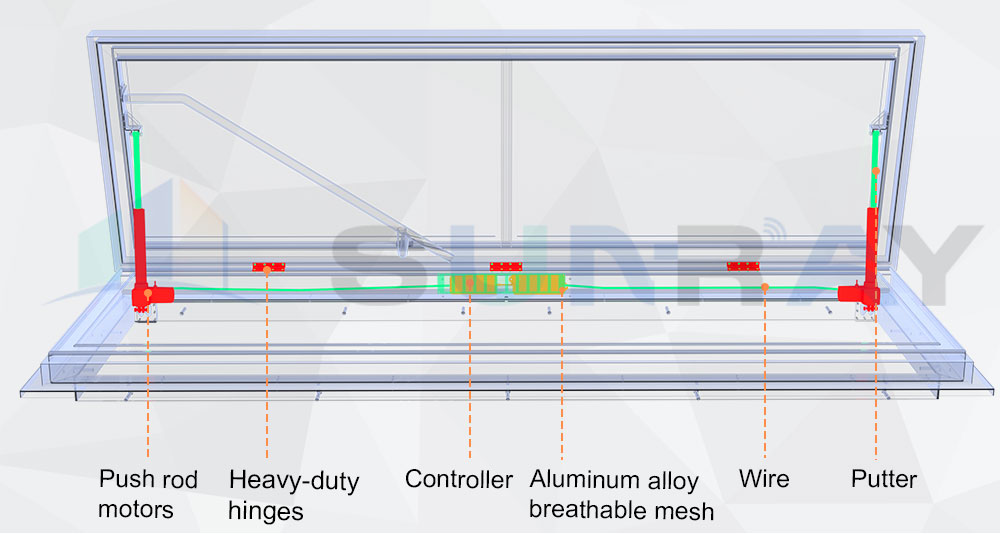

Electronic control system

1. Stable motor drive

2. Operation noise as low as 20 decibels

3. External motor is easy to disassemble and maintain

4. Supports intelligent operation

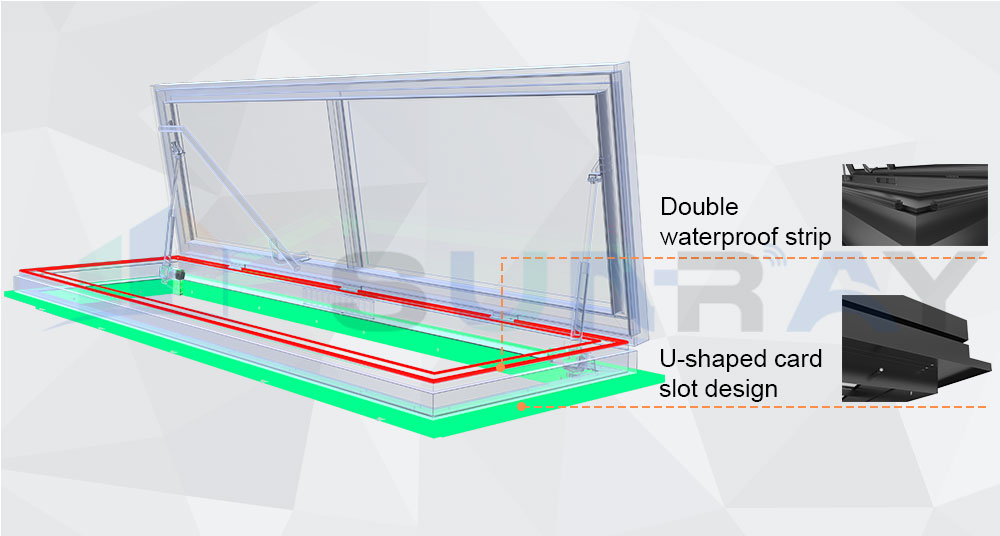

Waterproof principle

1. Double sealing structure improves airtightness and prevents water vapor penetration

2.The self-developed U-shaped groove design is precise and waterproof, close to the building, effectively preventing rainwater from seeping in, ensuring a stable and durable structure.
