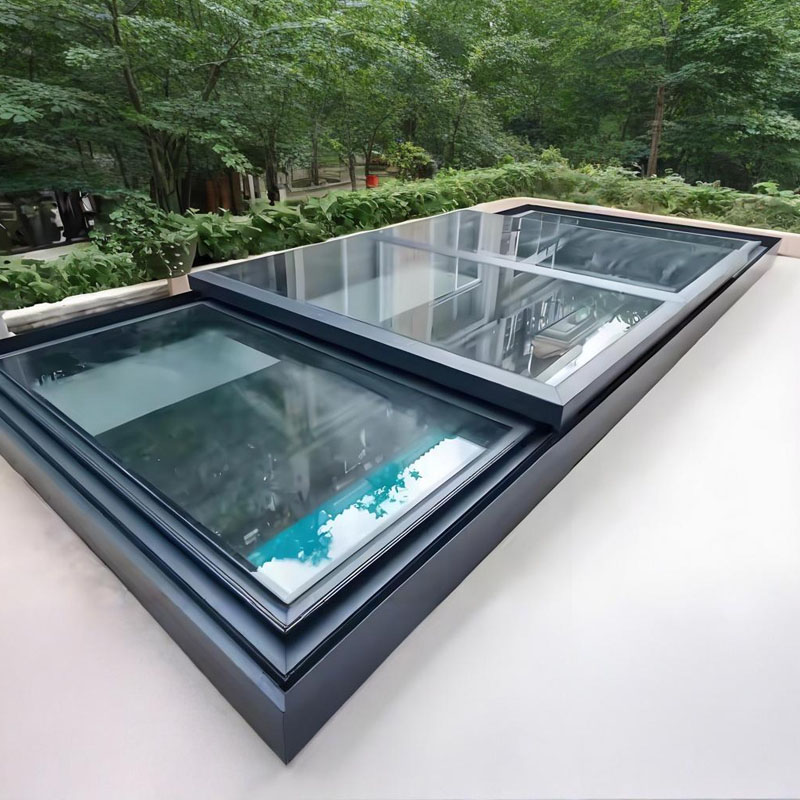

Medium sliding skylight
X
Medium sliding skylight
X
Medium sliding skylight
X
Medium sliding skylight
X
Medium sliding skylight
X
Medium sliding skylight
X

Medium sliding skylight

share to:

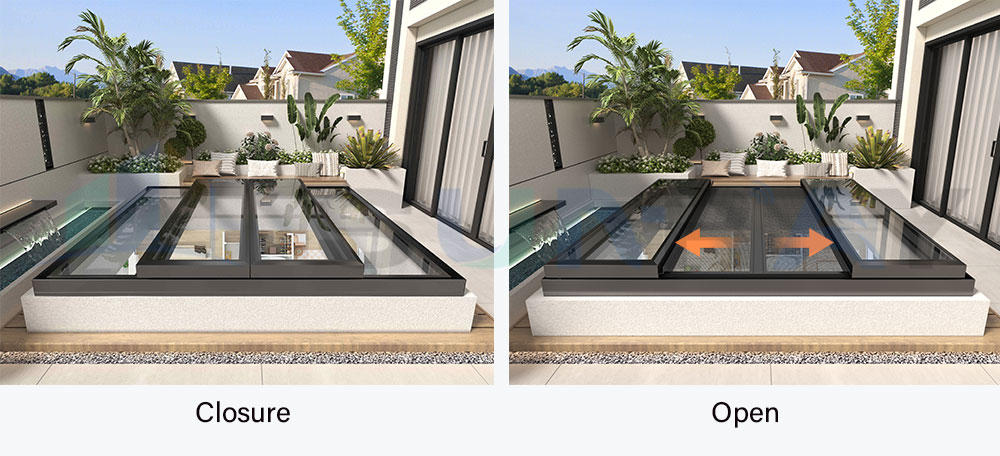

1. Provide different opening solutions. The window sash can be opened in a large area to provide a panoramic view and better lighting and ventilation.
2. Built-in silent high-torque motor reduces motor vibration and the noise is as low as 30 decibels.
3. The motor is a 24V safe power supply. In extreme cases, the control system has overvoltage protection, overload protection, overcurrent protection and other functions.
3. Optional UPS backup power supply, which can automatically switch during a power outage. Exclusive innovative patented research and development solves the problem of being unable to turn on and off after a power outage.
4. Automotive-grade sealing tape, spraying process, not only improves strength, but also enhances water tightness, thermal insulation, and better energy saving.
5. Intelligent control, can be connected to smart home system, voice control, mobile phone remote control, rain sensor, etc.

Specification

Medium sliding skylight Specifications
Profile thickness 1.5mm~3.0mm
Profile Series SRY 110 Series
Customizable size range L:≤6m,W:≤6m
Installable glass thickness ≤35mm
Motor service life 3 years
Profile service life 10 years

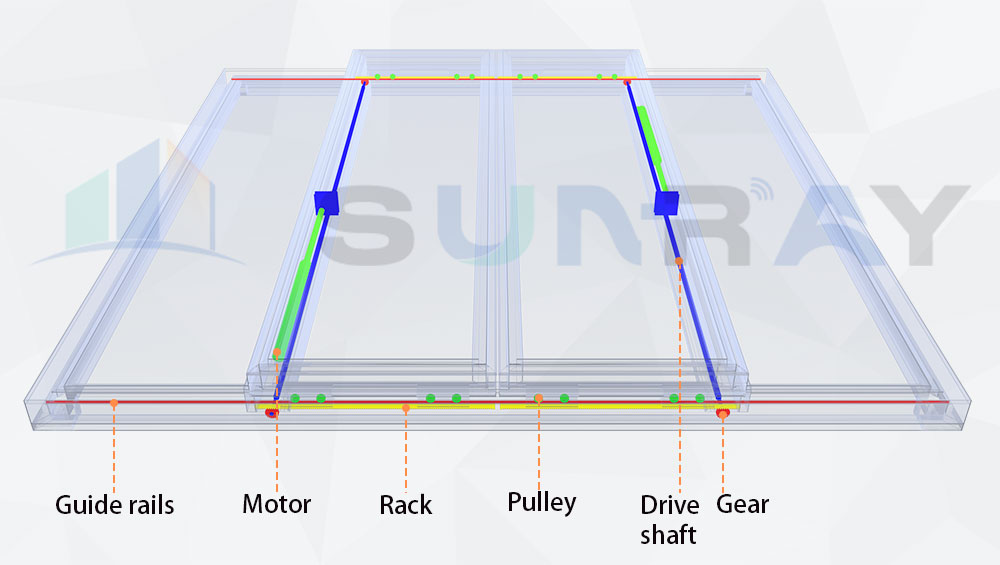

Operating principle:

The tubular motor drives the transmission shaft to rotate, and the transmission shaft drives the gear fixed on the window sash to extend and retract. At the same time, the window sash uses a silent pulley and runs smoothly along the rack on the stainless steel track of the window frame.

Electronic control system:

1. Stable motor drive

2. Operation noise as low as 20 decibels

3. External motor is easy to disassemble and maintain

4. Supports intelligent operation

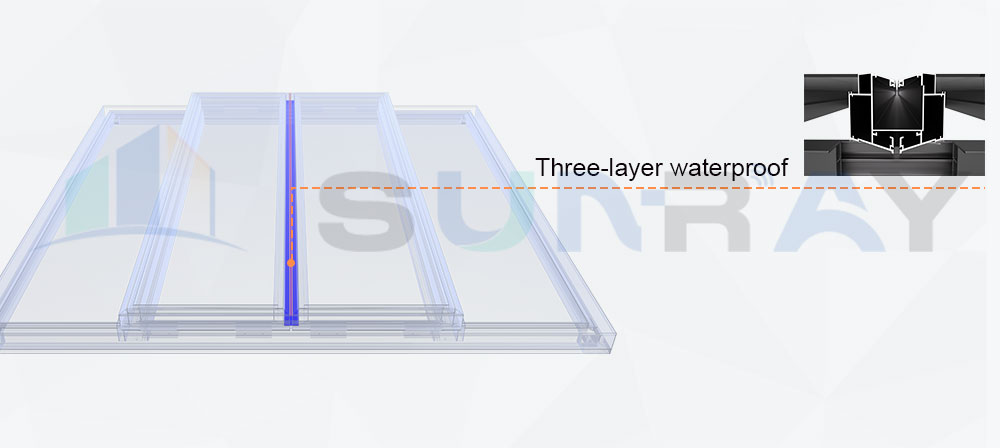

Waterproof principle:

One layer of the window frame is equipped with a rubber strip to provide waterproofing.

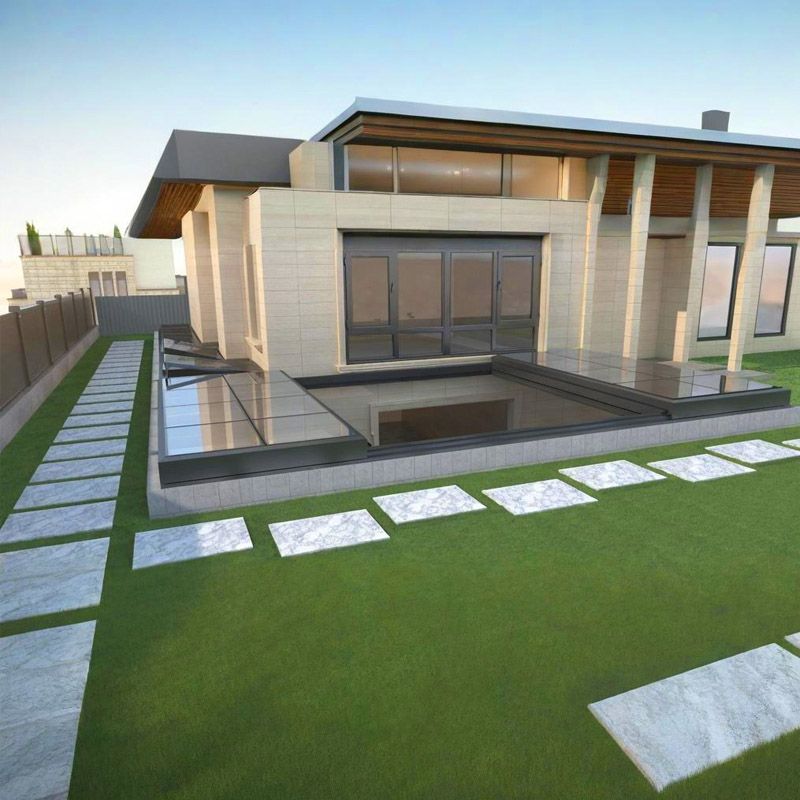

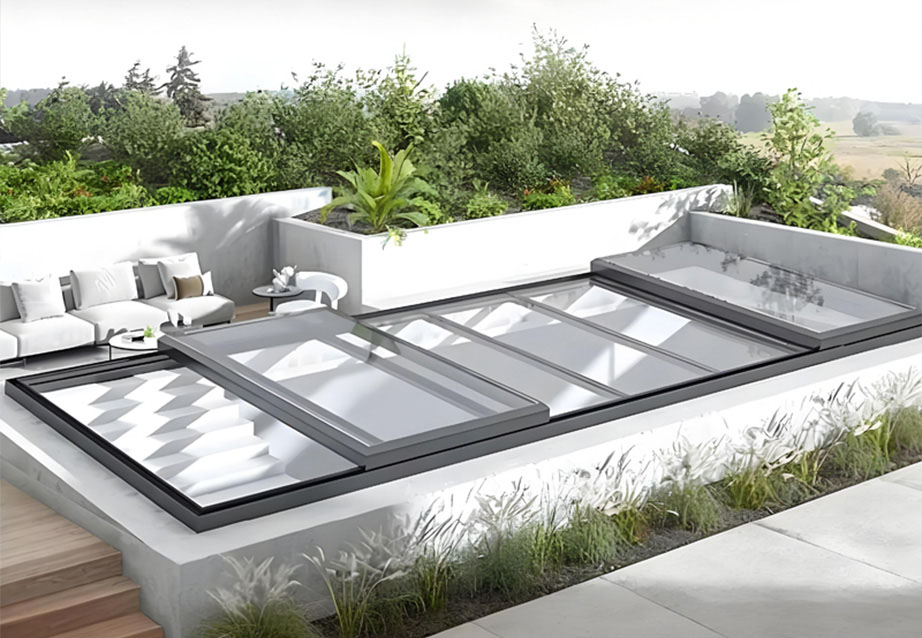

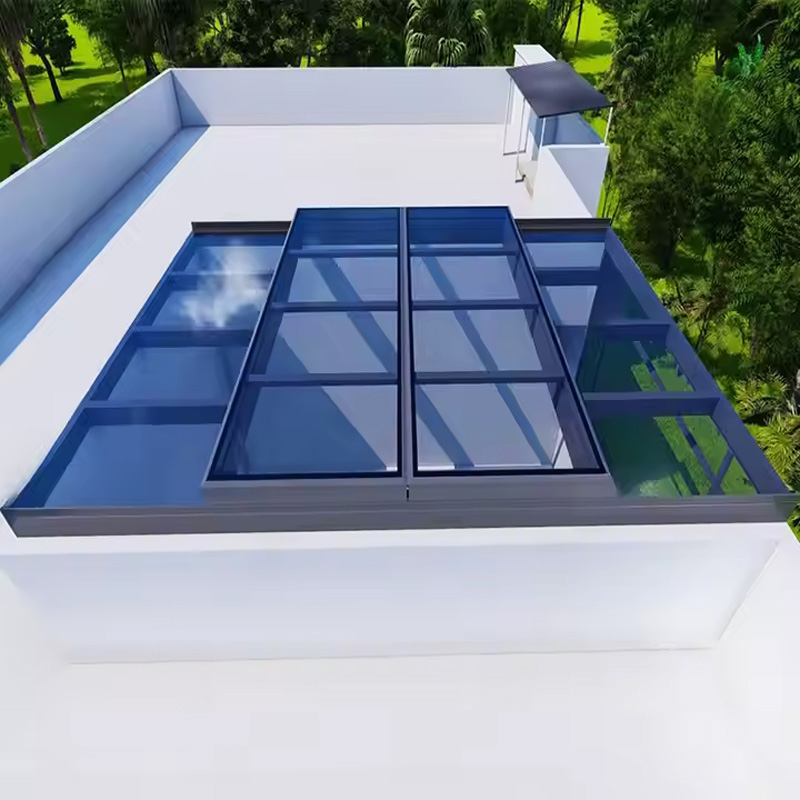

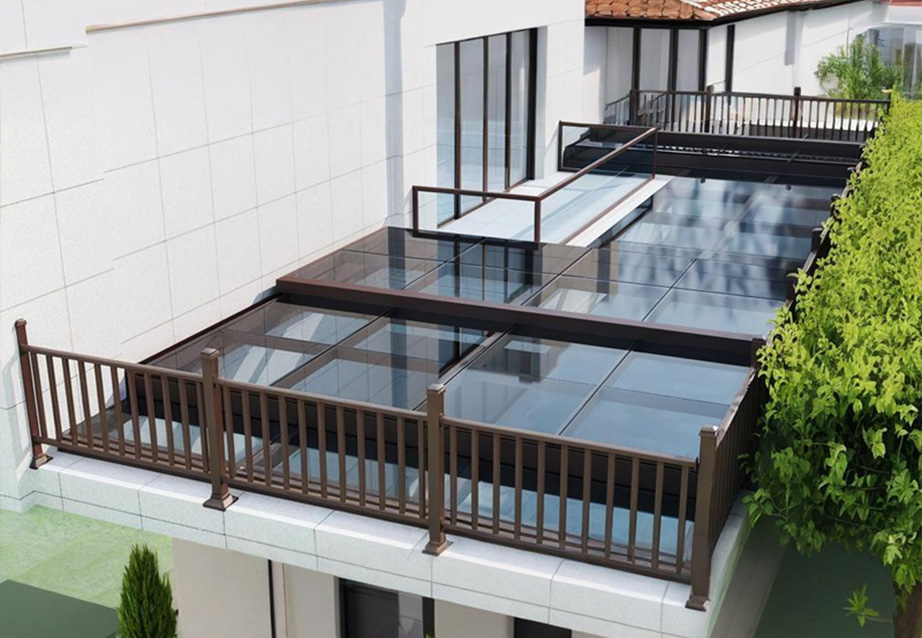

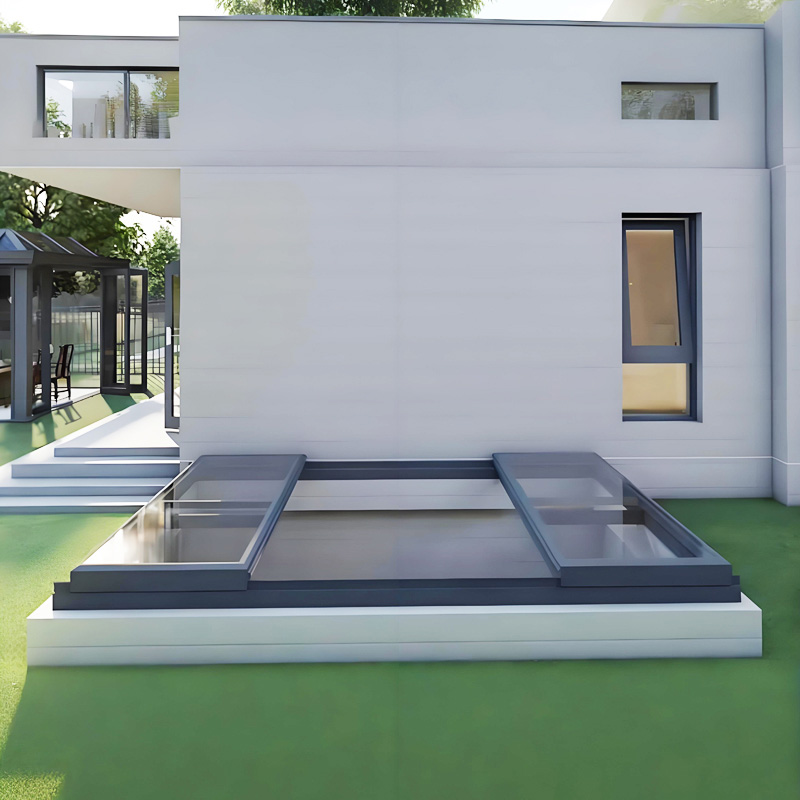

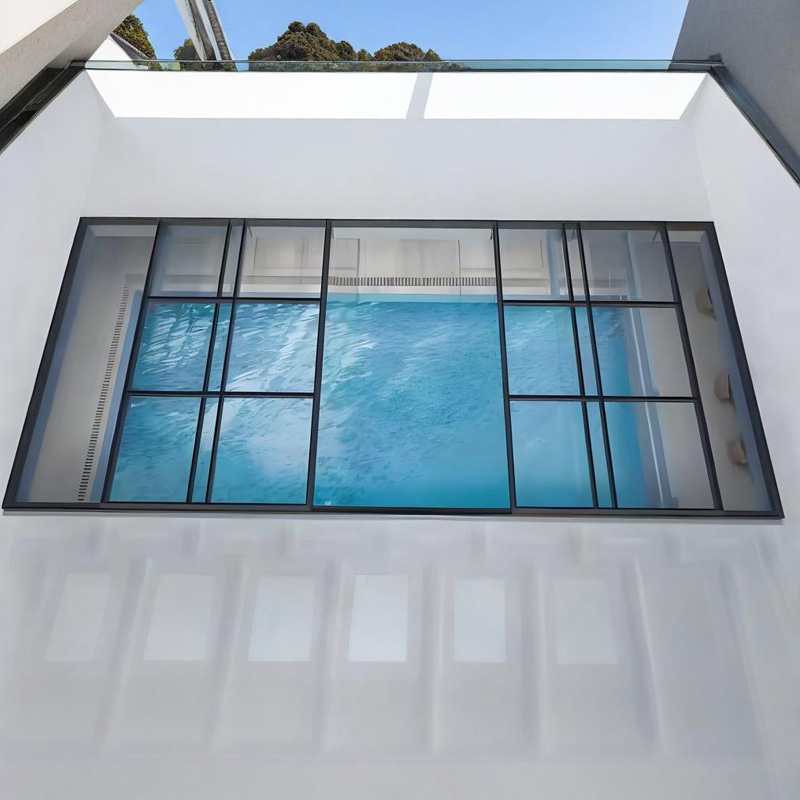

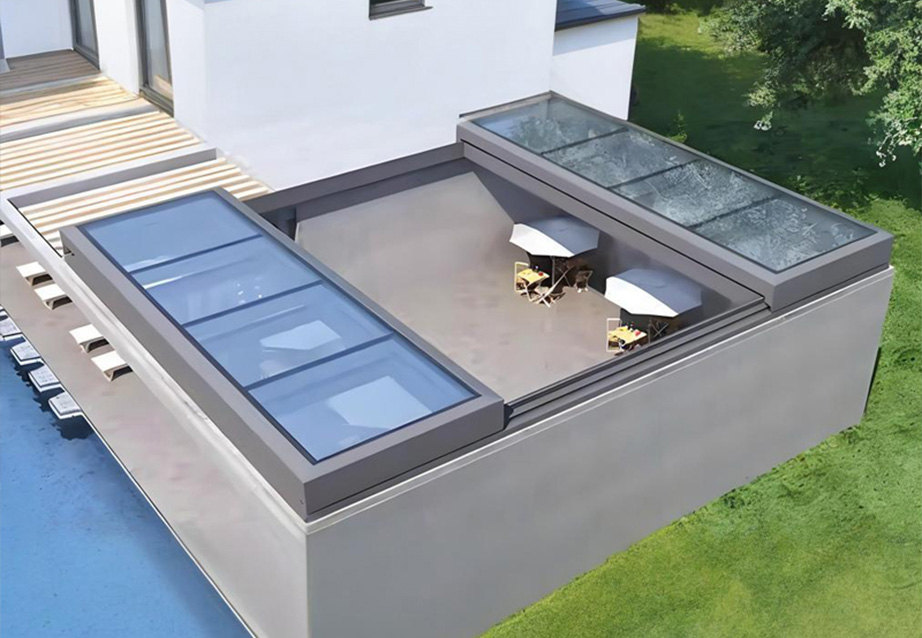

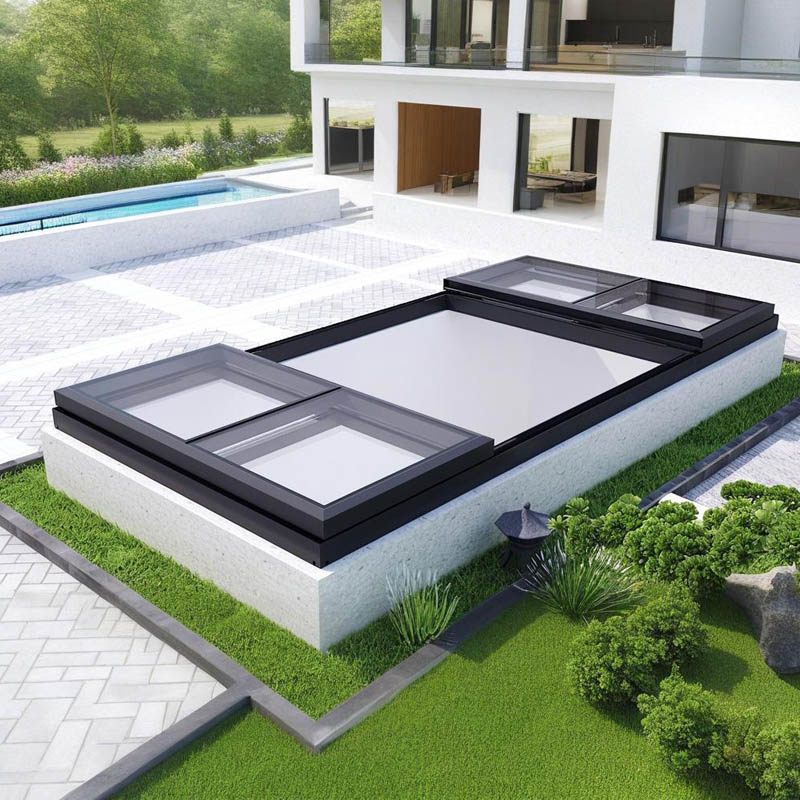

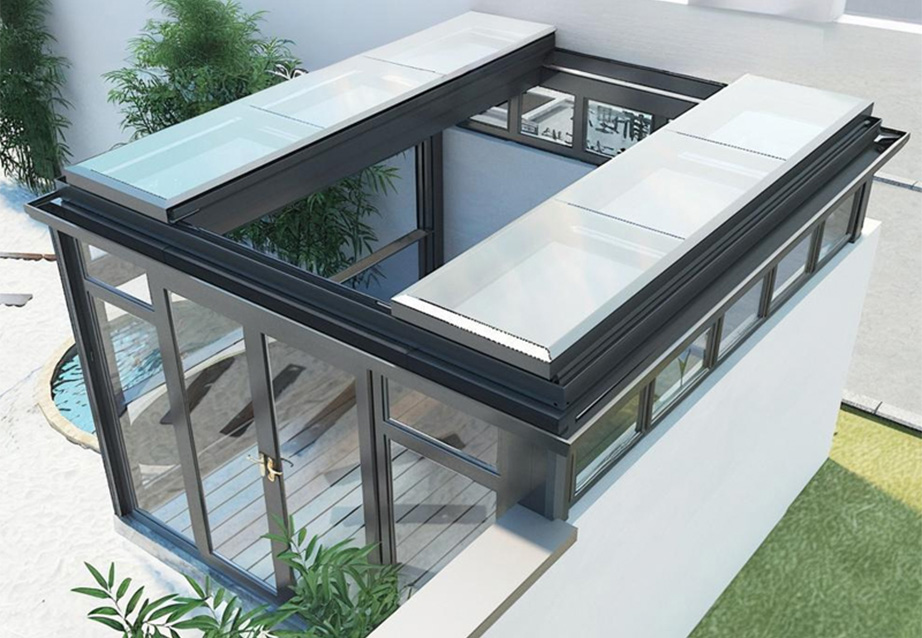

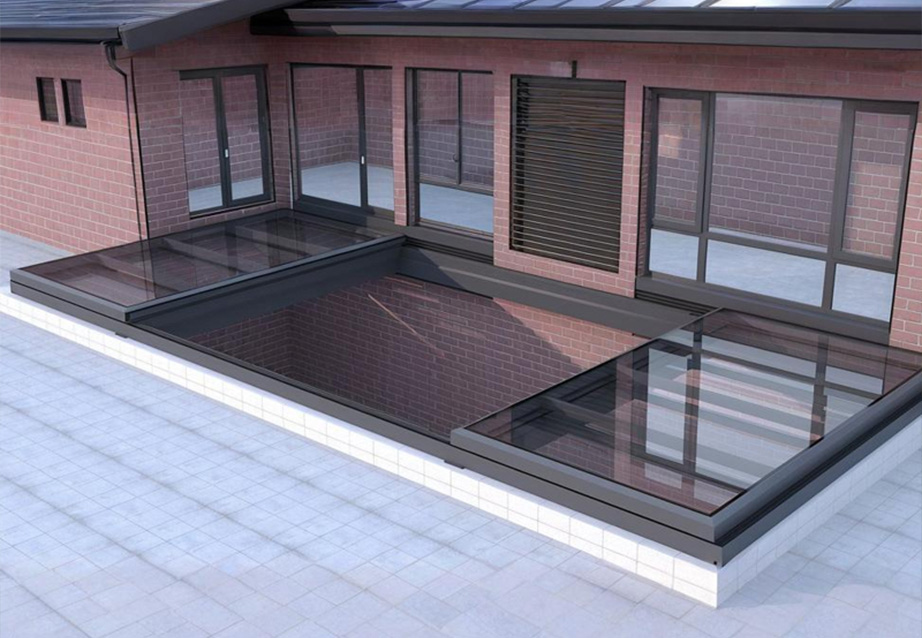

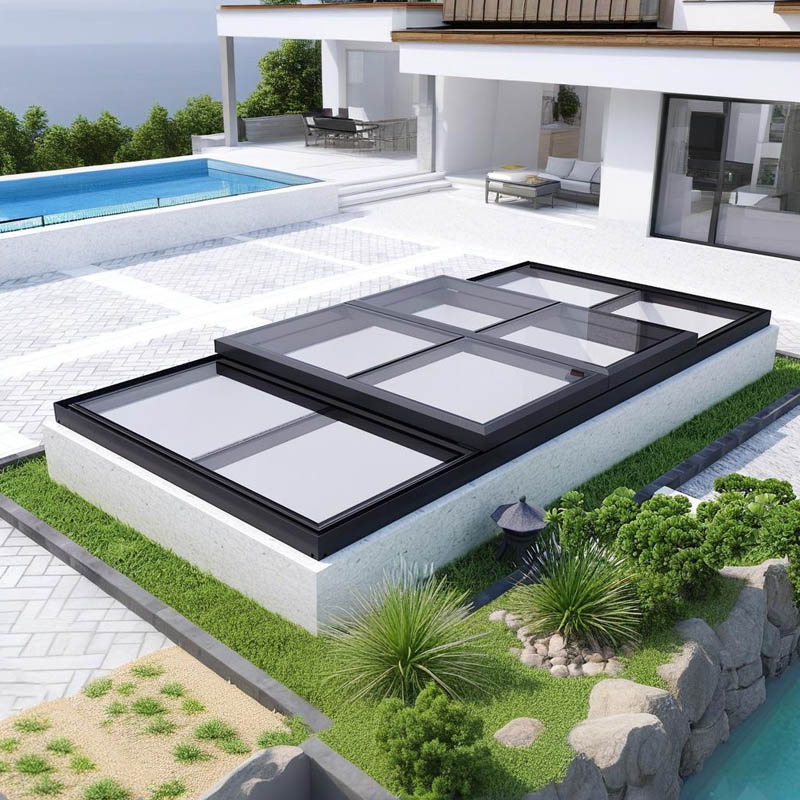

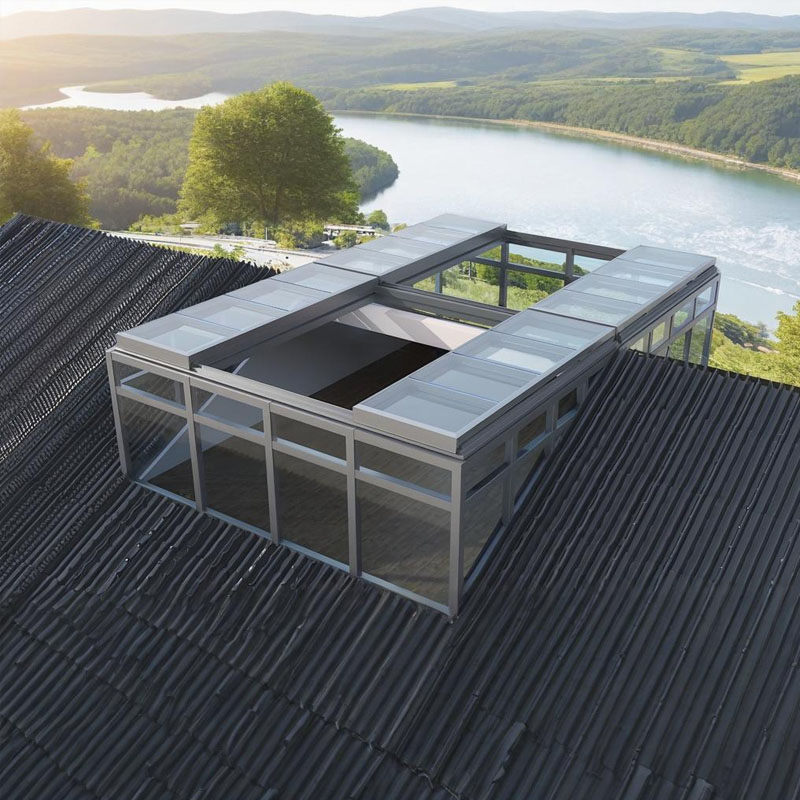

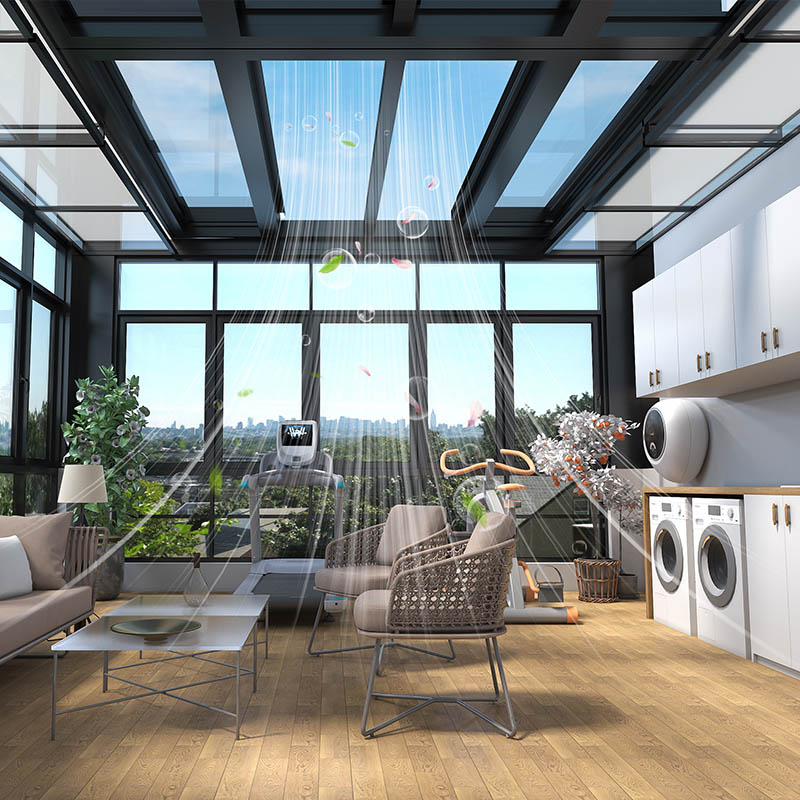

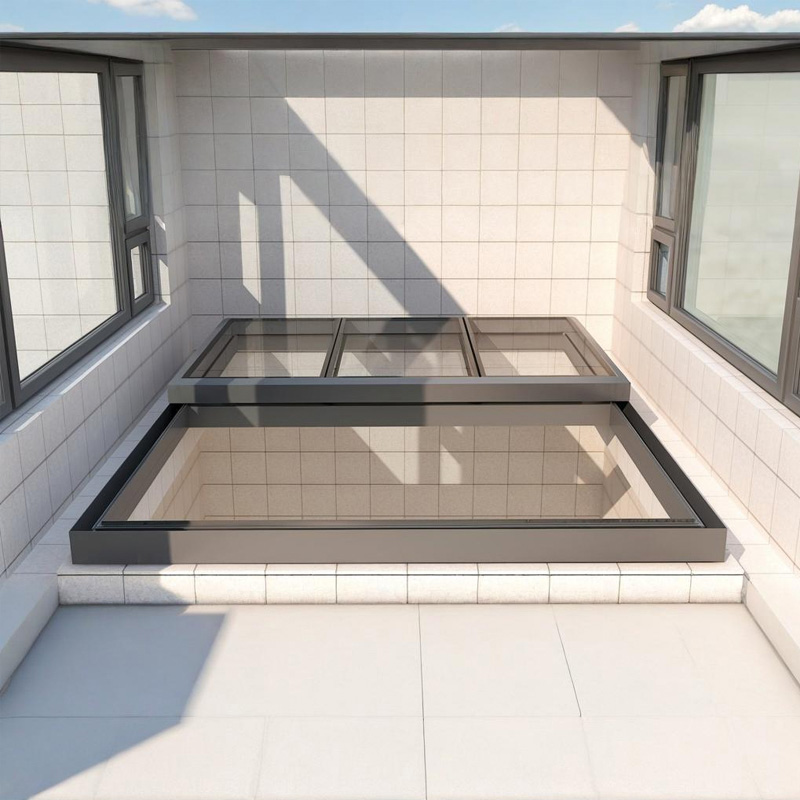

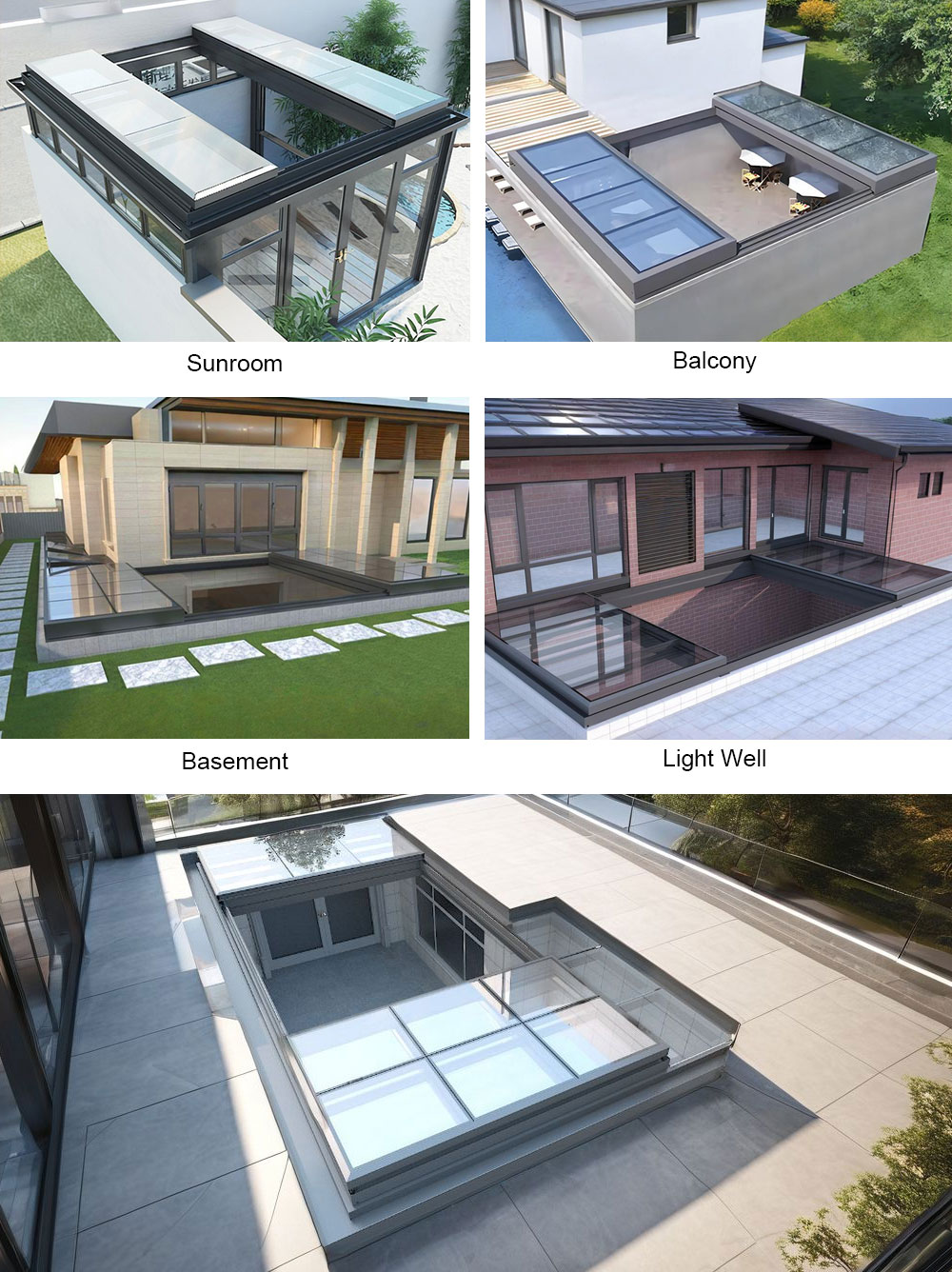

Applicable scenarios

Profile color card:

In order to better meet your needs, we support color customization for large orders, ensuring that each product perfectly reflects your brand style.

Feature

1. Provide different opening solutions. The window sash can be opened in a large area to provide a panoramic view and better lighting and ventilation.
2. Built-in silent high-torque motor reduces motor vibration and the noise is as low as 30 decibels.
3. The motor is a 24V safe power supply. In extreme cases, the control system has overvoltage protection, overload protection, overcurrent protection and other functions.
3. Optional UPS backup power supply, which can automatically switch during a power outage. Exclusive innovative patented research and development solves the problem of being unable to turn on and off after a power outage.
4. Automotive-grade sealing tape, spraying process, not only improves strength, but also enhances water tightness, thermal insulation, and better energy saving.
5. Intelligent control, can be connected to smart home system, voice control, mobile phone remote control, rain sensor, etc.
