The motors are divided into: top-suspended skylight chain motors, gauze/honeycomb curtain motors, translational sunroof motors, lifting windows/overlapping skylights/top-folding windows, and high-quality top-suspended motors.
share to:
The motors are divided into: top-suspended skylight chain motors, gauze/honeycomb curtain motors, translational sunroof motors, lifting windows/overlapping skylights/top-folding windows, and high-quality top-suspended motors.

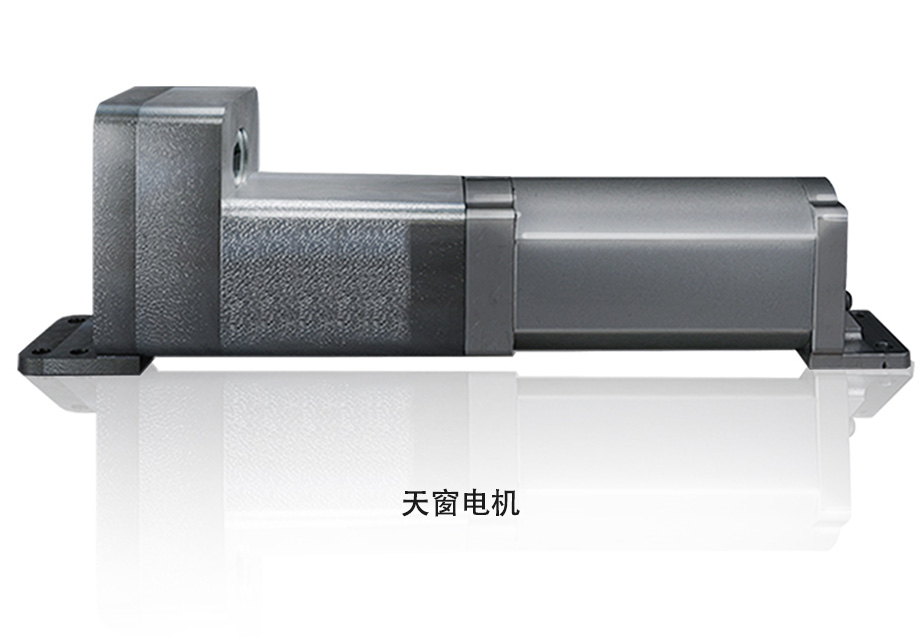

1.Top hanging sunroof chain motor
|
Name |
Working voltage |
Opening speed |
Maximum current |
Push/Pull(N) |
Travel distance |
|
Single chain |
DC voltage：24V |
10MM/S |
15A |
600 |
300MM |
|
Double chain |
DC voltage：24V |
10MM/S |
15A |
800 |
300MM |
2.Screen/honeycomb curtain motor
|
Name |
Working voltage |
Opening speed |
Power |
Push/Pull(N) |
|
Motor |
AC：100-240V |
30-45 rpm |
19W |
1.5 |

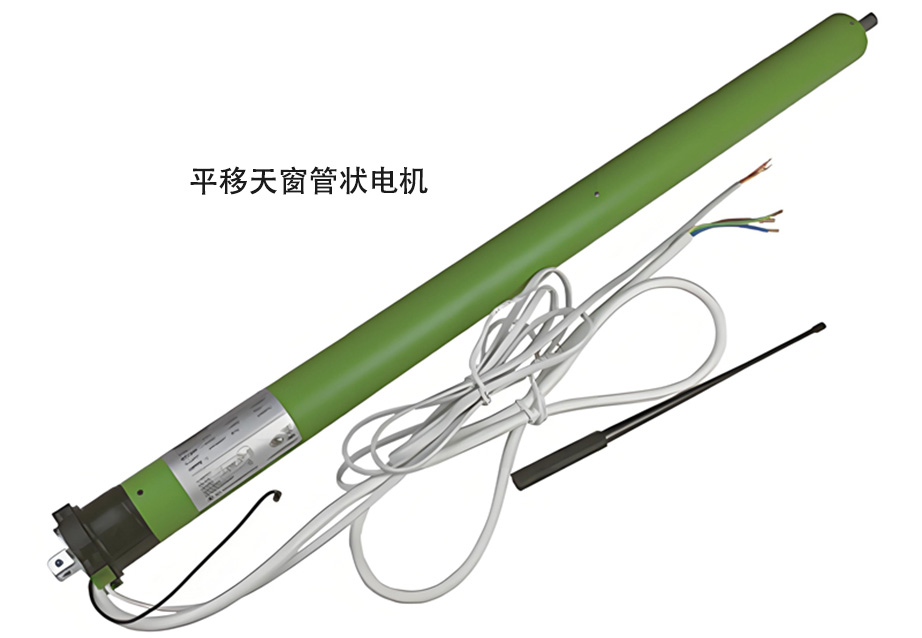

3.Panning sunroof motor
|
Name |
Working voltage |
Opening speed |
Maximum current |
Push/Pull(N) |
Power |
|
Tubular motor |
DC voltage：24V |
30 rpm |
900MA |
1.2 N.M |
11W |

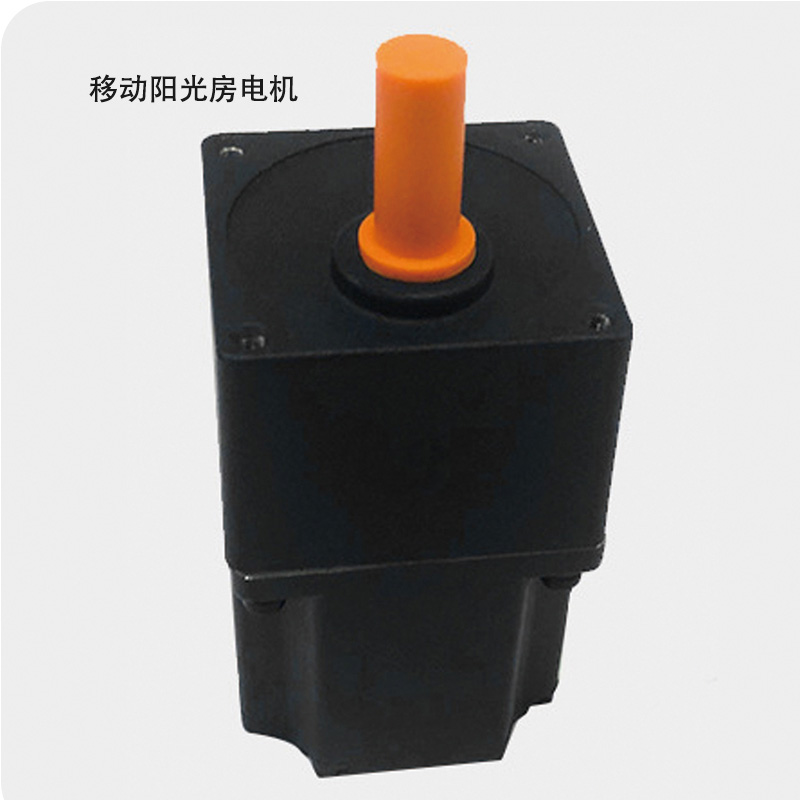

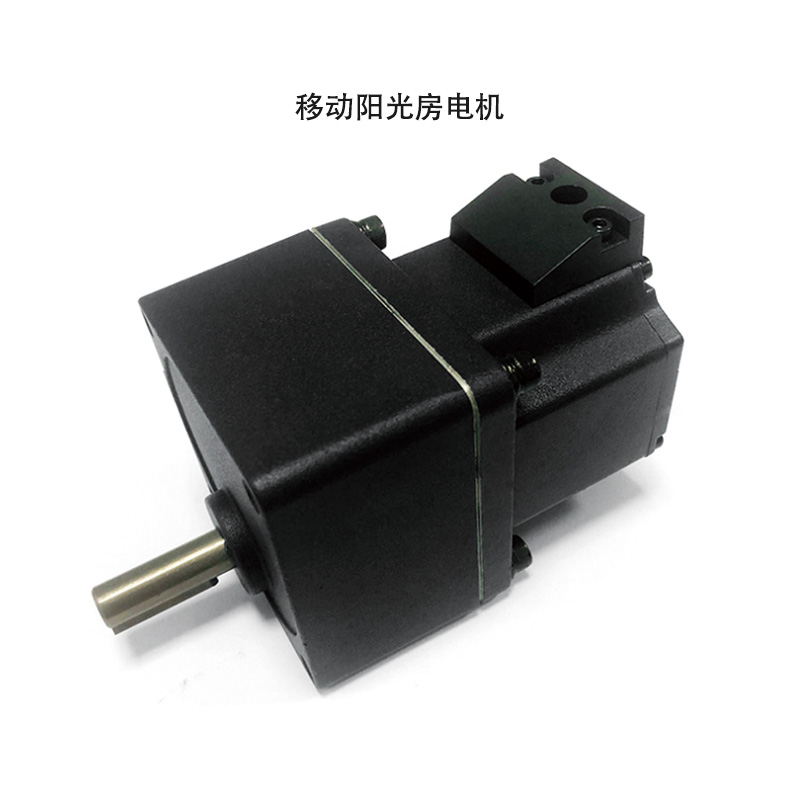

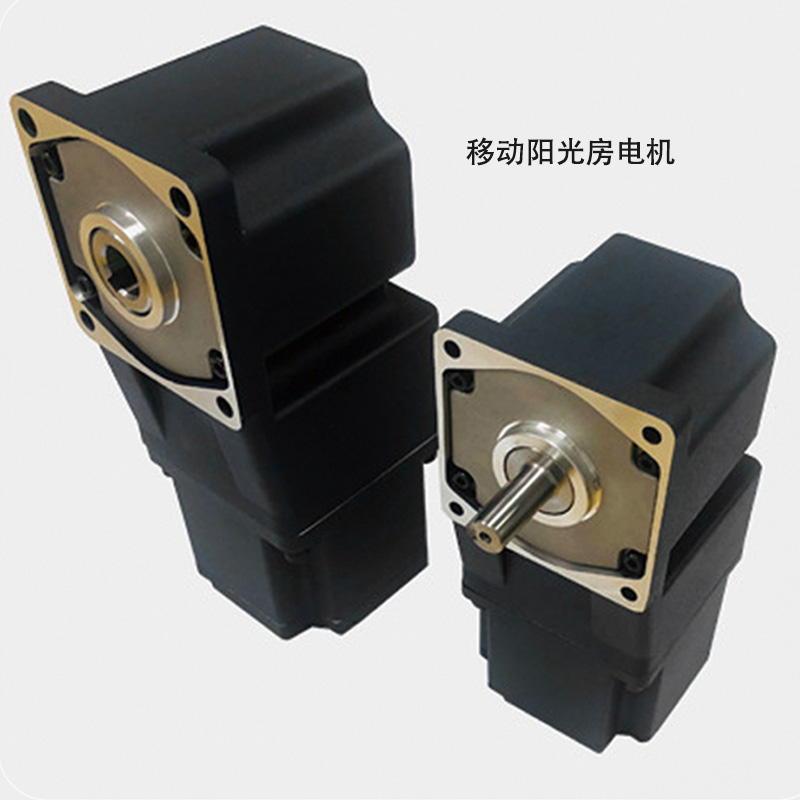

4.Lifting windows/overlapping skylights/upper folding windows
|
Name |
Working voltage |
Opening speed |
Maximum current |
Push/Pull(N) |
Power |
|
DC motor |
DC voltage：24V |
30 rpm |
3A |
225mN.M |
72W |
5.Premium top-suspension motor
|
Name |
Working voltage |
Opening speed |
Push/Pull(N) |
Travel distance |
|
Push rod motor |
DC voltage：24V |
5mm/s |
6000/10000 |
25~600mm |
