1. Large-area opening, flexible design, and multiple row combinations.
2. It can be controlled individually or jointly.
3. Built-in three-layer water-conducting structure, ultra-high watertightness and waterproofness.
4. Environmentally friendly and energy-saving, it can effectively improve lighting and adjust indoor temperature.
5. Intelligent control, can be connected to smart home system, voice control, mobile phone remote control, rain sensor, etc.
| Retractable Skylight Specification | |
| Profile thickness | 1.5mm~3.0mm |
| Profile Series | SRY 95 Series |
| Customizable size range | L:≤2.5m，W:≤12m |
| Installable glass thickness | ≤18mm |
| Motor service life | 3 years |
| Profile service life | 10 years |

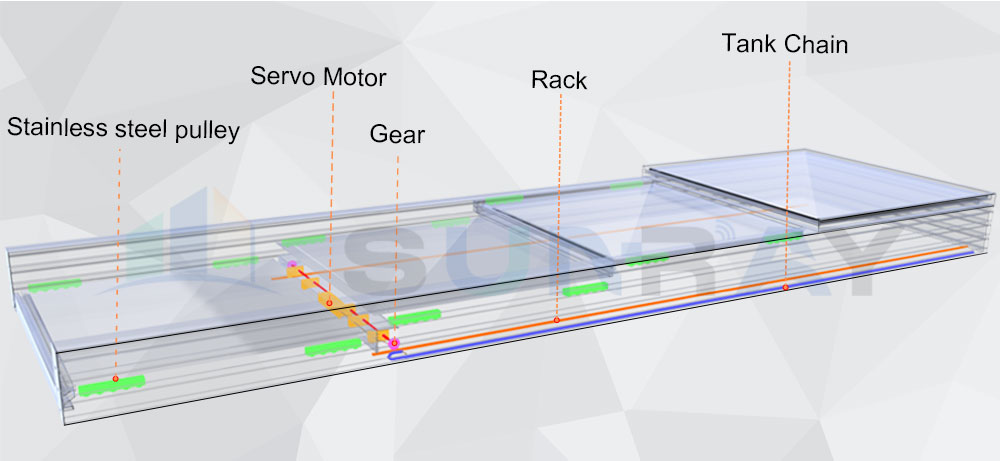

Operating principle：
The servo motor drives the transmission shaft to rotate, driving the gears on the window sash to move back and forth. The window sash runs smoothly along the stainless steel track and rack through the silent pulley.

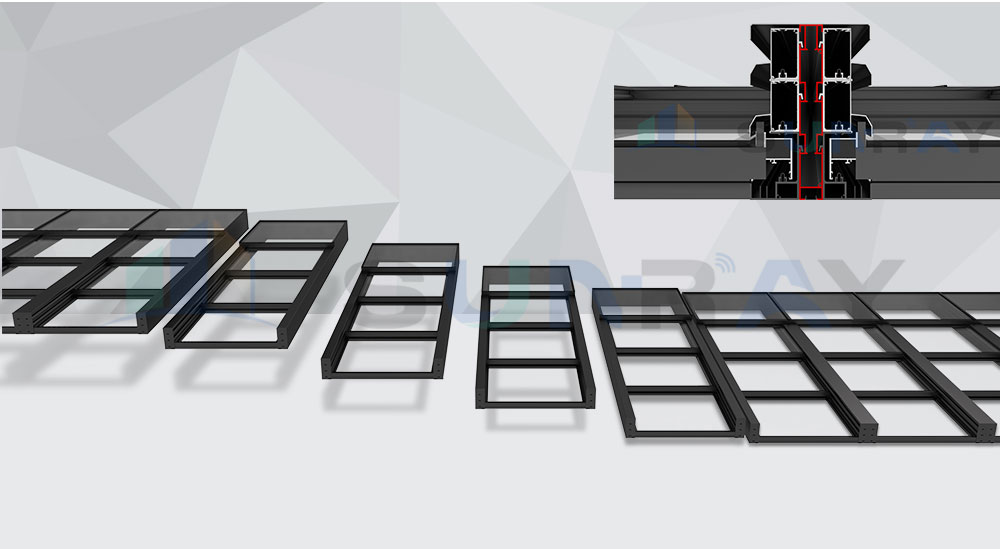

Continuous installation:
The frame main beam can form a support beam,which is convenient for continuous installation of multiple panels
Electronic control system：
Precise control, intelligent operation and automatic adjustment functions improve safety, convenience and comfort, and ensure that the sunroof operates efficiently, stably and intelligently.

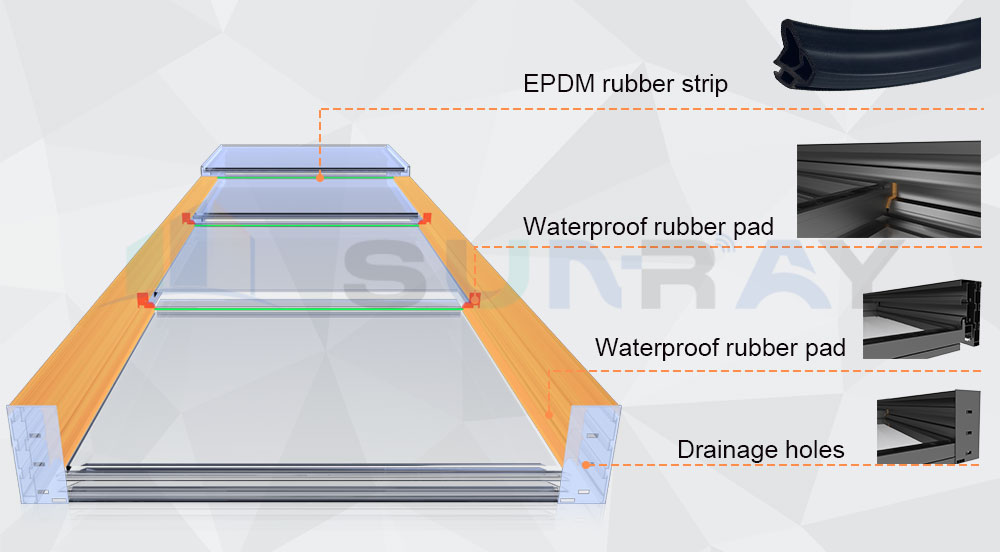

100% waterproof:
Four waterproof designs provide all-round protection for the skylight, effectively preventing rainwater from penetrating.
Applicable scenarios
Profile color card：
In order to better meet your needs, we support color customization for large orders, ensuring that each product perfectly reflects your brand style.
