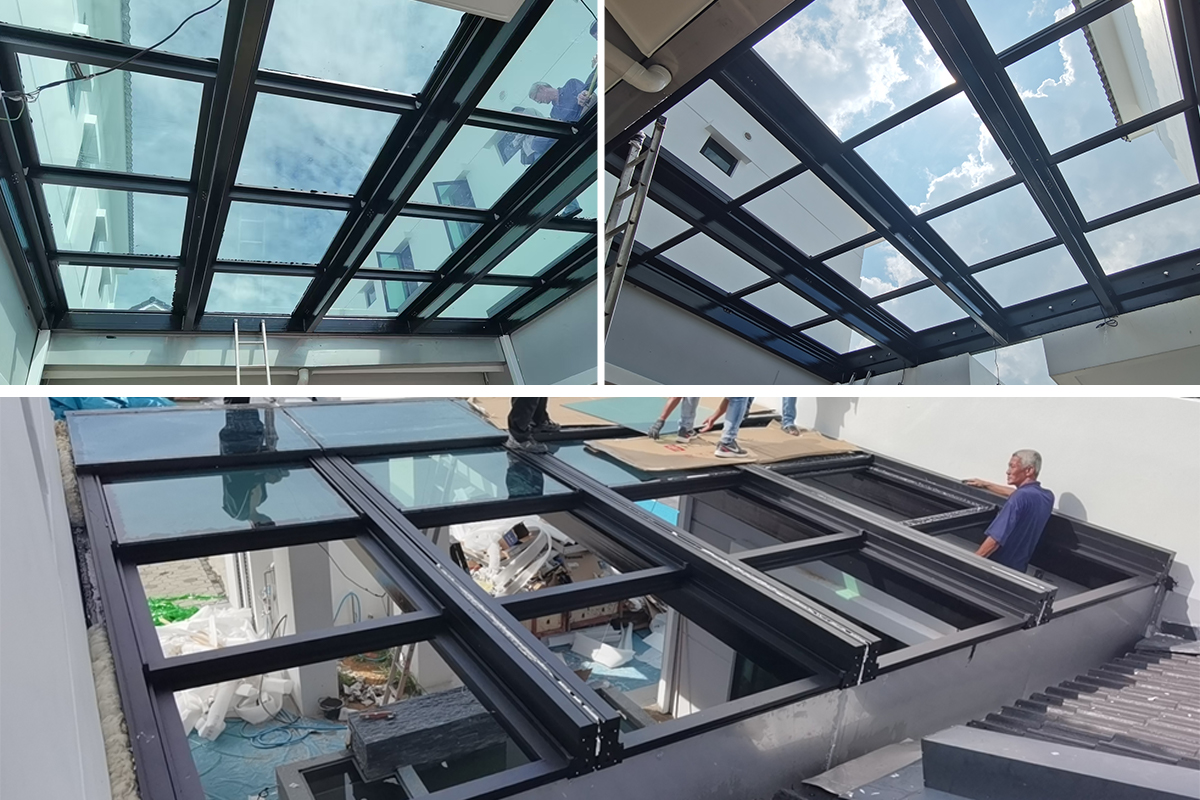

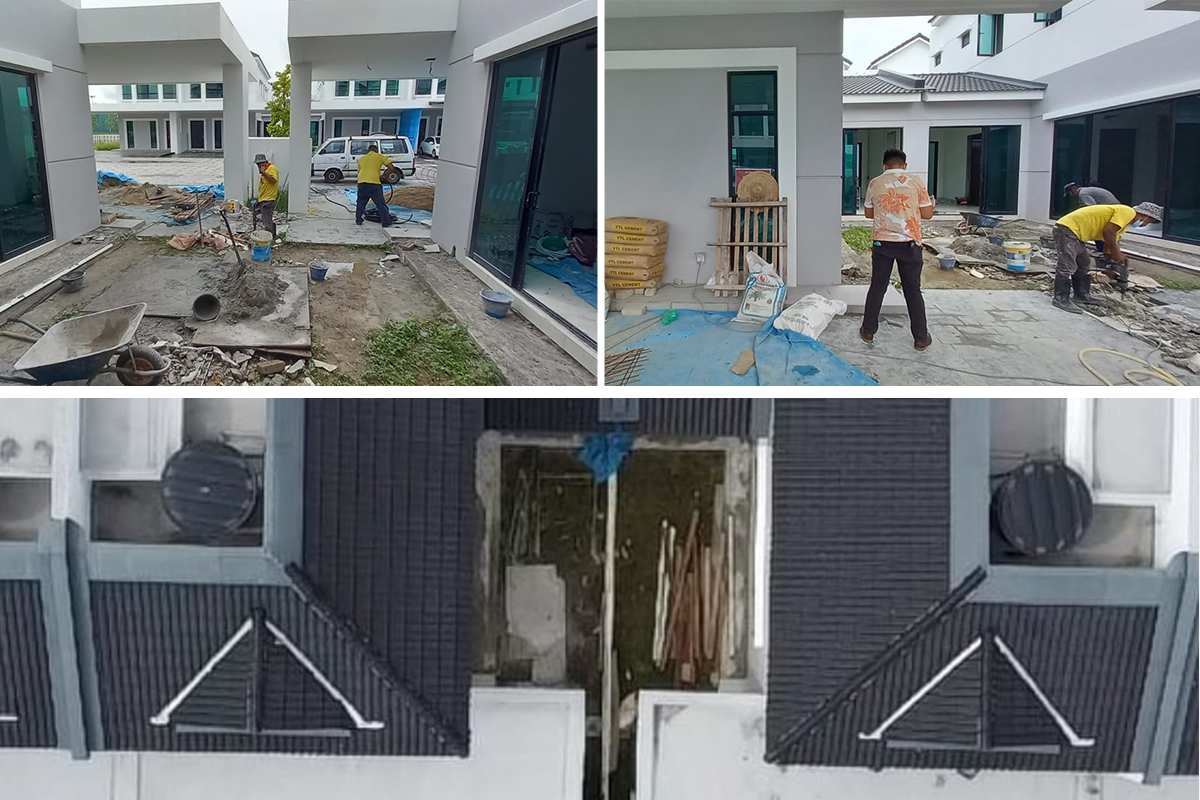

Sunray’s Smart Retractable skylight for luxury villas in Malaysia is the perfect solution to climate-proof the open-air area connecting the two villas.
customer expectation:
To create an intelligent skylight system that can withstand extreme weather and create a comfortable transitional space. Key requirements included waterproofing to cope with an annual rainfall of 2,400mm, blocking strong UV rays, realizing more than 75% of the opening area, maintaining the architectural unity of the villa complex, and supporting intelligent remote control.
We have developed exclusive solutions for the special installation requirements of connected structures and the harsh conditions of tropical climates.
Design solution:

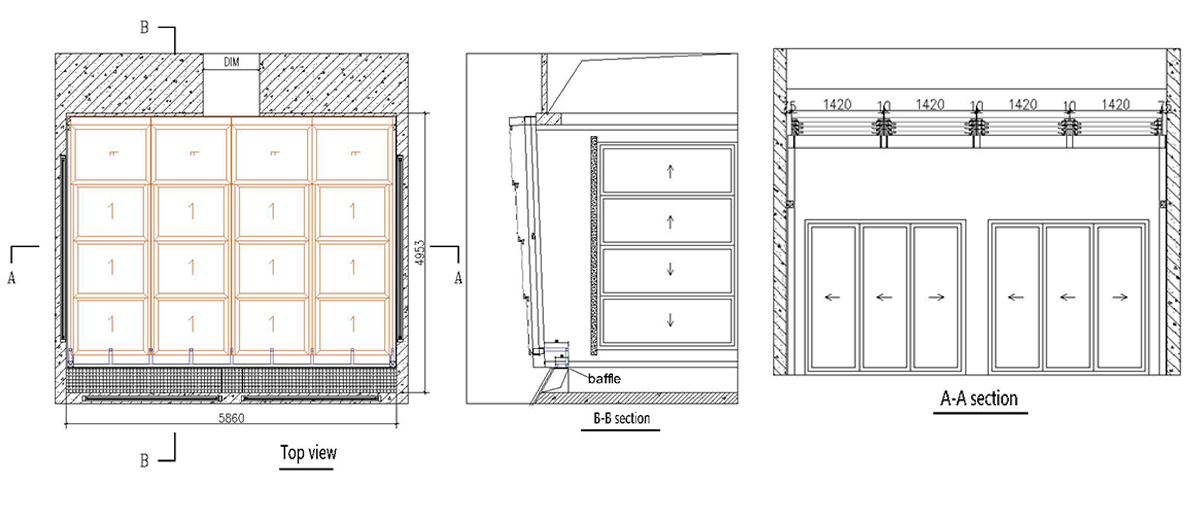

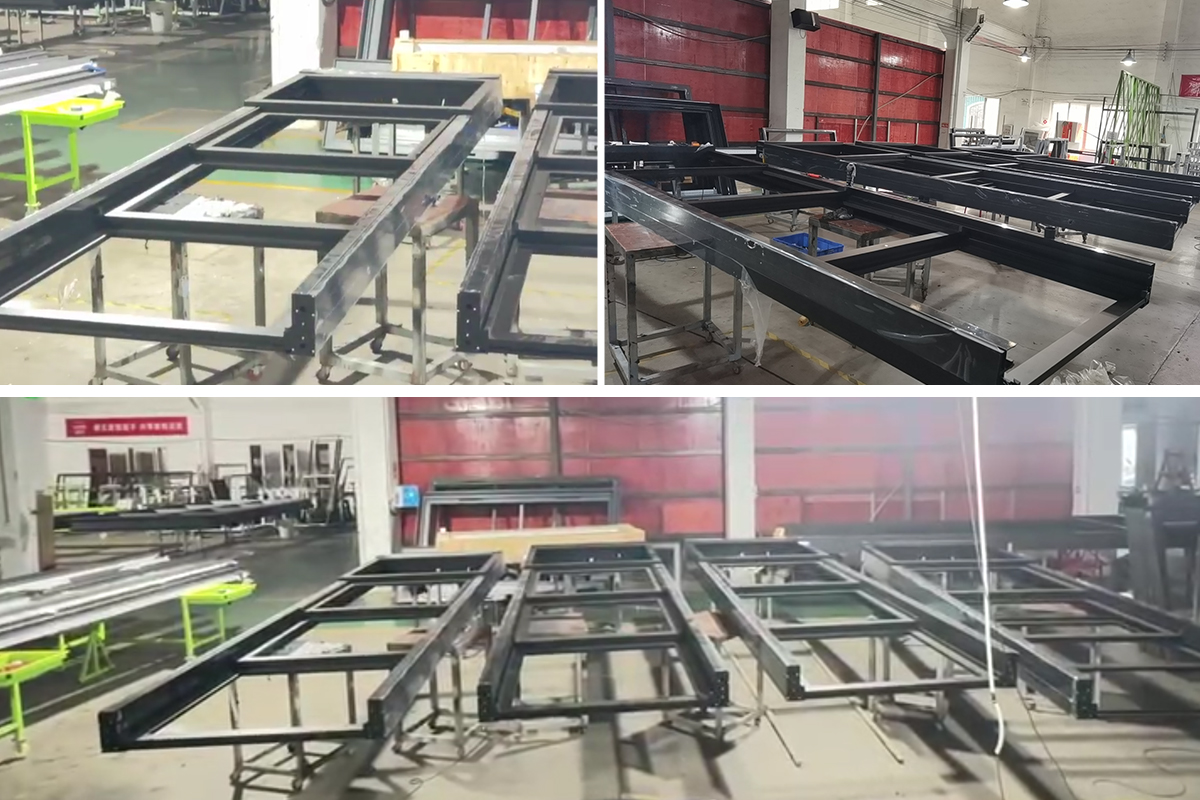

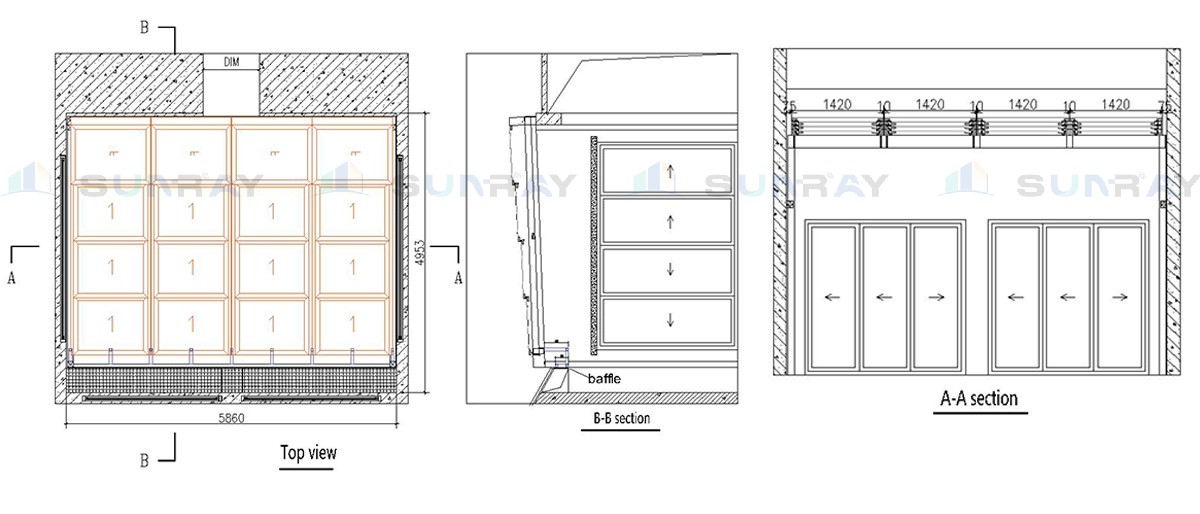

- Adopting a design that can be continuously installed, the main beam of the frame can form a support beam, which facilitates the continuous installation of multiple panels and is suitable for connecting holes of different sizes.
- EPDM rubber strips and the built-in triple water-conducting structure provide all-around protection for the skylight, which effectively prevents rainwater from seeping in.
- Configuration of aviation-grade 6063-T5 aluminum profiles with surface spraying treatment, and 6mm+1. 14PVB +6mm toughened laminated glass to ensure durability in high humidity environments.
- Intelligent control system supports intelligent control of cell phones and other devices, and is equipped with a rain sensor that automatically closes the sunroof when it rains.
Project results:
The skylight system adopts an innovative ventilation design that increases air exchange efficiency to three times that of conventional solutions, significantly optimizing indoor air quality. Its excellent insulation performance can maintain a stable indoor/outdoor temperature difference and reduce air-conditioning energy consumption by 25%. Equipped with an intelligent control system, it supports one-touch multi-mode switching for convenient and efficient operation. In terms of appearance design, the skylight is harmonized with the villa’s architectural style, which not only meets the functional requirements but also enhances the aesthetic value of the overall building.

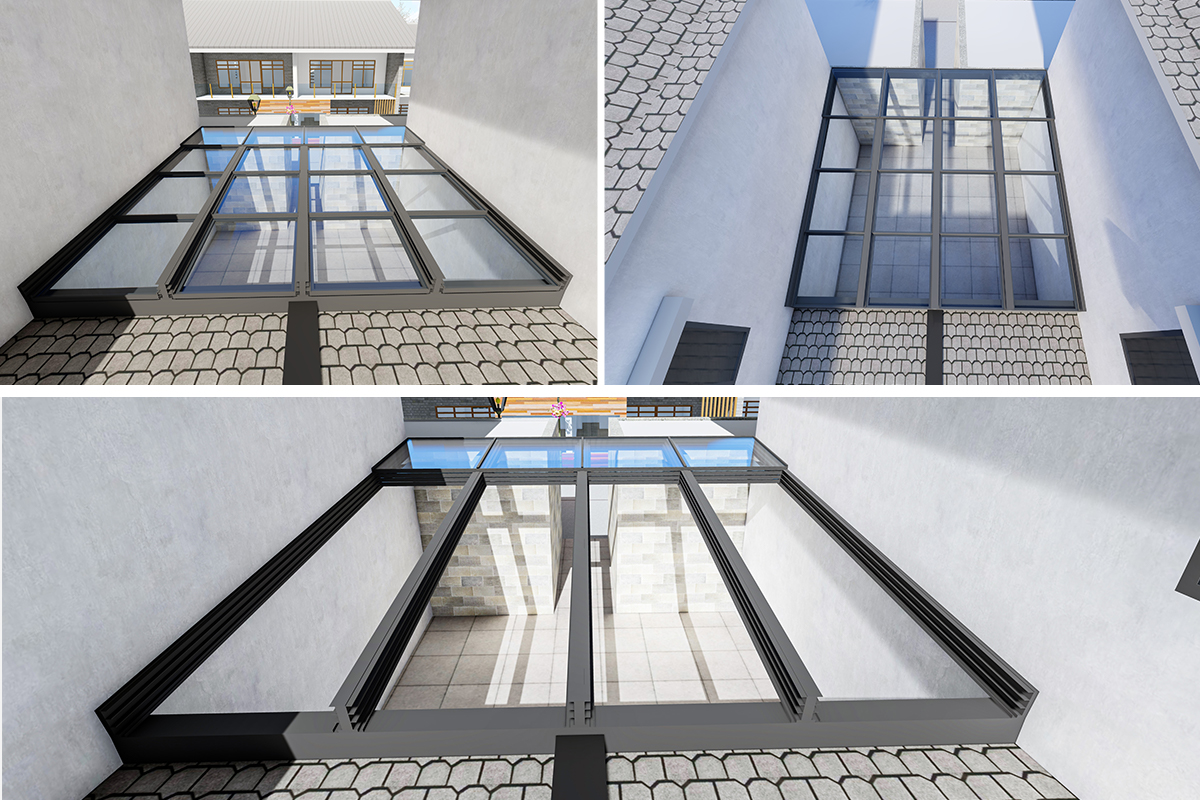

Sunray Skylight redefines the modern villa lifestyle through its innovative design, which cleverly realizes the spatial relationship between the two villas: ensuring the privacy of each, while creating an elegant and fluid connection through the intelligent skylight system.
